Pearson’s Results

In 1991 Pearson, calculated the exact partition function for the 4x4x4 Ising model. Plotting Pearson’s results against my own. I also managed to calculate this using my program, the results are compared

Pearson vs. Yogi

This page displays my results against R.B Pearsons.

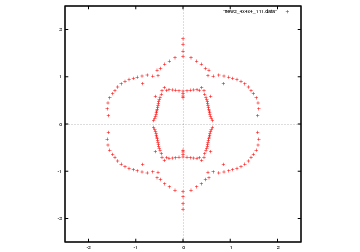

Fig 1:Zero's of Pearsons 4x4x4 periodic boundary conditions in all directions

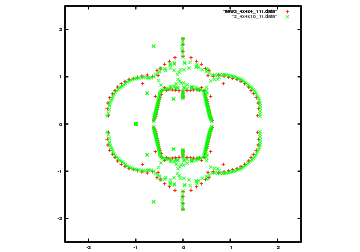

Fig 2:I have added my zero's of a 4x4x4 with periodic boundary conditions in only 2 directions
Fig 3: I have added my zero's of a 4x4x10 with periodic boundary conditions in only 2 directions

Zero Distribution of 5x5x10

Fig 1: Zero distribution of 2 state 5x5x10 . Potts Model with periodic boundary conditions in the shorter dimensions

Animation of 5x5xN (where 2 <= N <= 10)

5x5/5x5xL.gif
Fig 1: Zero distribution of 2 state 5x5x10 . Potts Model with periodic boundary conditions in the shorter dimensions

Zero distribution for Q=2 5x5xN

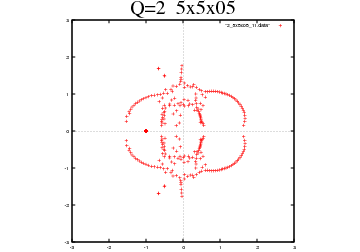

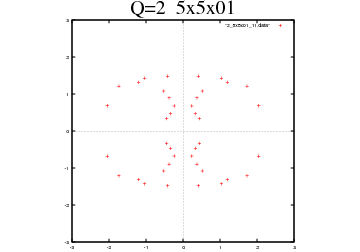

5x5/2_5x5x01_11.gif 5x5/2_5x5x02_11.gif
5x5/2_5x5x03_11.gif 5x5/2_5x5x04_11.gif
5x5/2_5x5x05_11.gif 5x5/2_5x5x06_11.gif

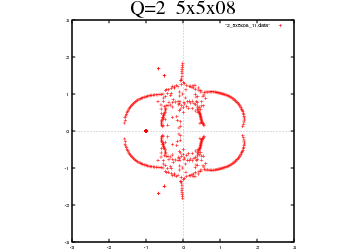

5x5/2_5x5x07_11.gif 5x5/2_5x5x08_11.gif
5x5/2_5x5x09_11.gif 5x5/2_5x5x10_11.gif

A study of the boundary conditions. The left column of results are my original ones. The right column is trivial palindromes of the polynomials found.

</a>

Zeros of 3 State 4x4x10 Potts Model

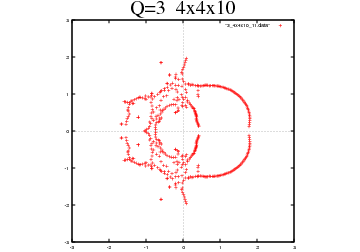

3_4x4x10_11.gif Fig 1: Periodic boundary conditions in the two short direction

3 state animation of 4x4xN (where 2 <= N <= 10)

4x4/4x4xL.gif

Zero distribution for Q=3 4x4xN

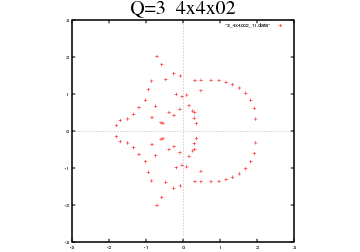

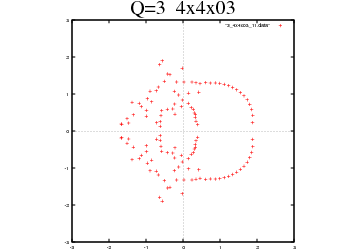

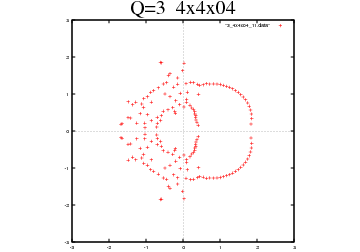

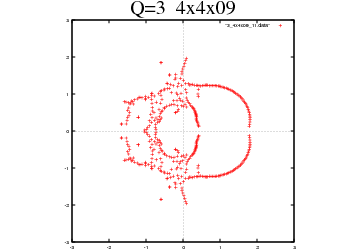

4x4/3_4x4x02_11.gif 4x4/3_4x4x03_11.gif

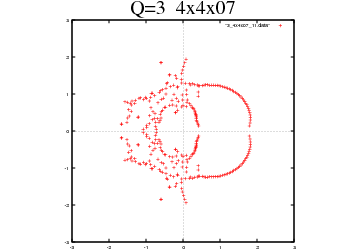

4x4/3_4x4x03_11.gif 4x4/3_4x4x05_11.gif


A study of the boundary conditions. The left column of results are my original ones. The right column is trivial palindromes of the polynomials found.

Animation of the 3 state 4x4xN

Zero Distribution of 4 state Potts Models

Below are zero distributions for the 3 x 4 x 10 Potts lattice model with Q = 4. This is for the purpose of taking a closer look at boundary conditions. The dimesions are height x width x depth

4_3x4x10_00.gif 4_3x4x10_01.gif

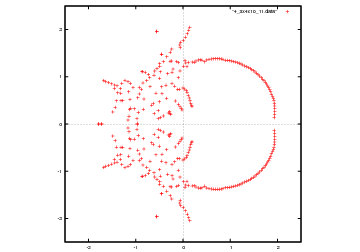

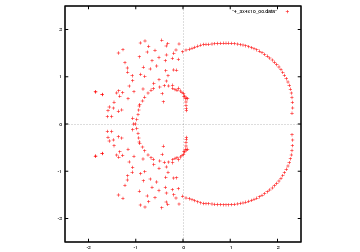

Fig 1: No Boundary conditions Fig 2: Periodic Boundary conditions in dimesions along the width and height

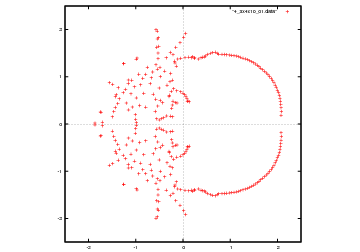

4_3x4x10_01.gif 4_3x4x10_10.gif

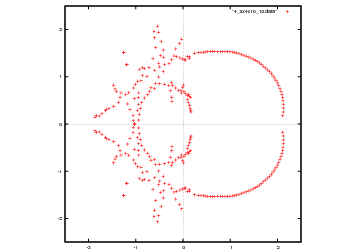

Fig 3: Periodic Boundary conditions in dimensions along the width only. Fig 4: Periodic Boundary conditions in dimensions along the height only.

Zero Distribution of 5 state Potts Models

Below are zero distributions for the 3 x 3 x 10 Potts lattice model with Q = 5. This is for the purpose of taking a closer look at boundary conditions. The dimesions are height x width x depth

5_3x3x10_00.gif 5_3x3x10_11.gif

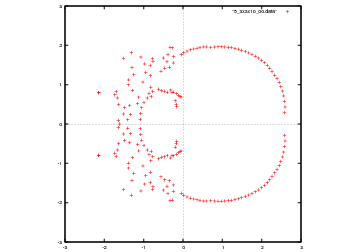

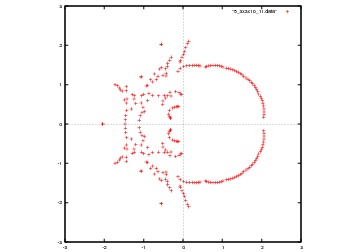

Fig 1: No Boundary conditions Fig 2: Periodic Boundary conditions in dimesions along the width and height
5_3x3x10_01.gif 5_3x3x10_10.gif

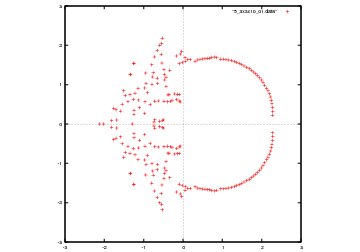

Fig 3: Periodic Boundary conditions in dimensions along the width only. Fig 4: Periodic Boundary conditions in dimensions along the height only.

The zero’s of my largest 3 dimensional results.

2-state 4x6x10 lattice

2-4x6x10-110

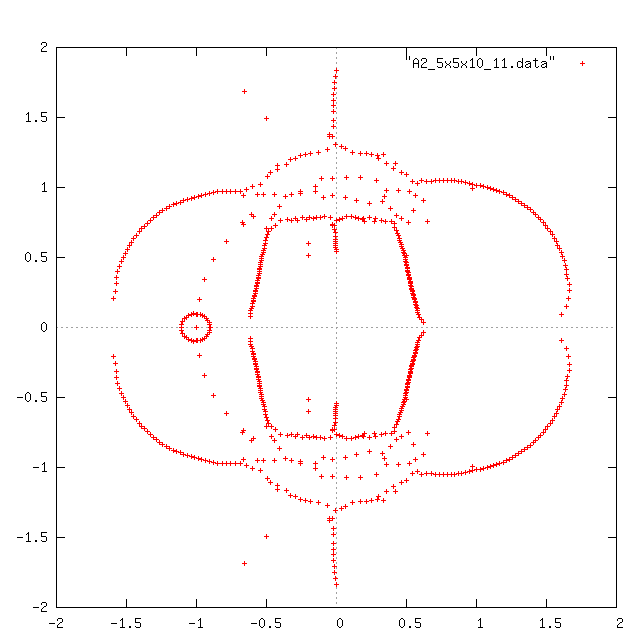

2-state 5x5x10 lattice (anti-ferromagnetic on right)

2-5x5x10-110  A-2-05x05x10-110.gif


2-state 4x4x10 lattice, with period boundary conditions


A closer look at the zero’s pinching the real axis

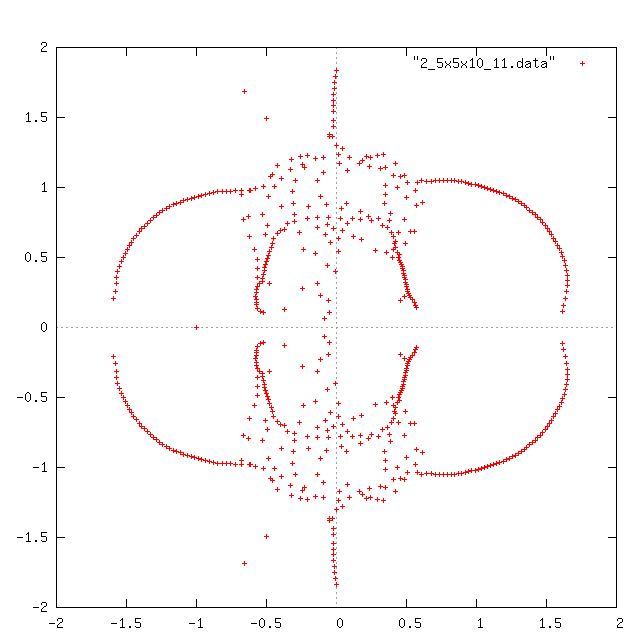

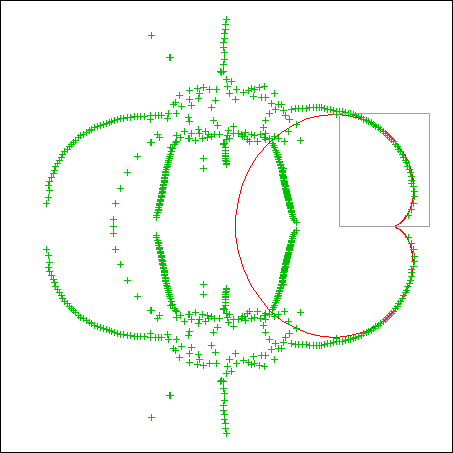

On this page we take a closer look at the “pinch” of the two outer arms of zeros on the real axis. A plot of the anti-ferromagnetic zeros of a 5x5x10 lattice with q=2 is shown below. The parametric graph f(x(t), y(t)) = acos(t)(1+cos(t+k)) + b, csin(t)(1+cos(t+k))+d is also plotted. Where a, b, c, d and k are real value constants.
A-2-05x05x10-110

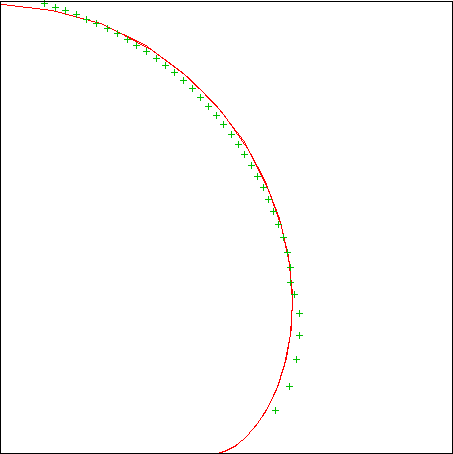

The figure below is a closer look at the top right arm.

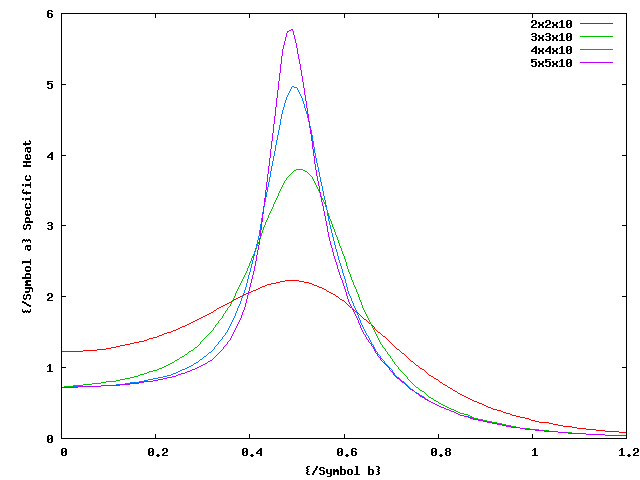

Specific Heat

Q = 2

Animation of Potts model with Q = 2

Below are animations of all the 2 state zero distributions found.

Q=2 BC = 00 Q = 2 BC = 11
Animation 1: No boundary conditions Animation 2: Boundary condition in both directions
Q = 2 BC = 01 animations/Q2_10.gif
Animation 3: Boundary Conditions only connecting the rows Animation 4: Boundary Conditions only connecting the columns

Animation of Potts model with Q = 3

Q=3

Animation of Potts model with Q = 4

animations/Q6.gif

Animation of Potts model with Q = 5

animations/Q5.gif

Animation of Potts model with Q = 6

animations/Q6.gif

2D Results

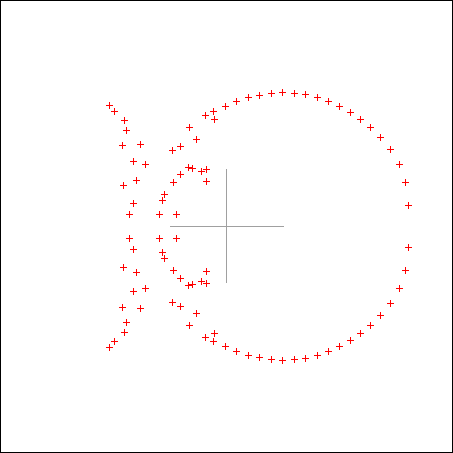

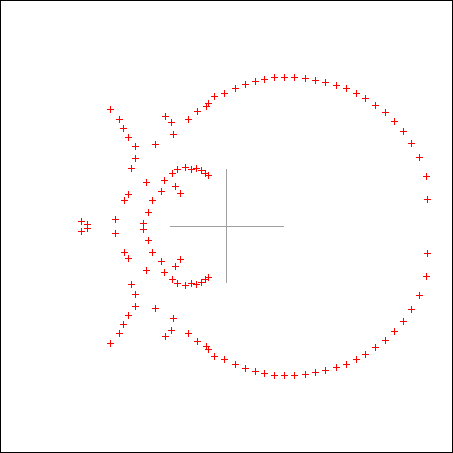

  • 6 state: 8x8, 7x7 (periodic boundary conditions)

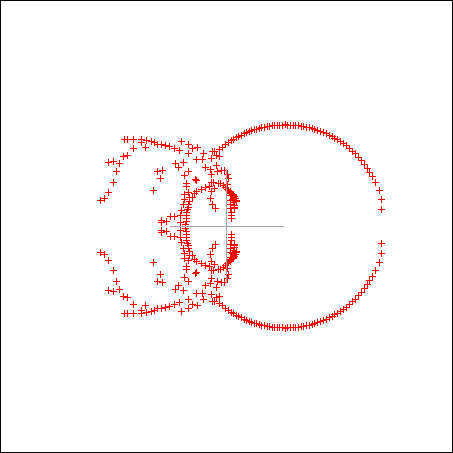

  • 3 state:12x16</li> </ul> </div> </div>
